KITC Skill Development Centre (Krishna Automation), Manesar, provides best VMC programming training in Manesar with placement support and advance VMC programming course by expert’s faculty with practical session on VMC machine.
Krishna Automation facilitates different types of automation training course according to the need of students and we provide advance VMC training in Manesar with new product development course at affordable cost.
Krishna Automation in Manesar offer VMC training in Manesar for part production and tool room application with courses focus on development and expertise that are in high demand and we provide quality VMC training with practical session on standard machine.

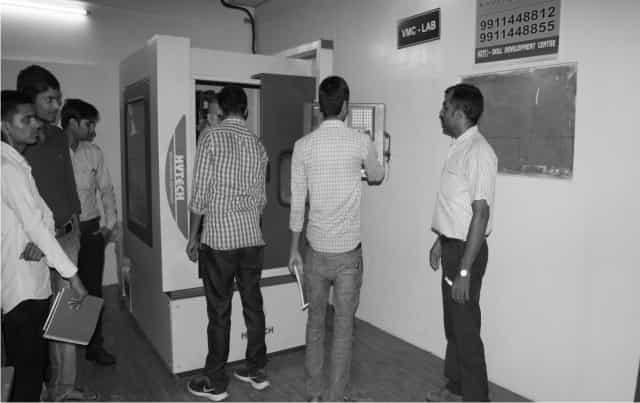

VMC Training Manesar : Machine Details
1. Make – Hytech
2. Model – SMT - 250
3. System – Siemens 808D
4. Magazine – 8 Station
KRISHNA AUTOMATION INDUSTRIAL TRAINING INSTITUTE, MANESAR (SINCE:2006 started in Gurgaon, Main Centre) is providing job oriented VMC training Programmes by wide experience person.
VMC Programming Video : Face Milling Operation Theory and Practical -L3 in Hindi Language
Main Faculty(VMC Training) : Mr. Gopal Singh Chaudhary -(Total 27 Years of Exp.)
VMC Programming Elements : VMC Machine Block Diagram
VMC Programming Class Schedule
( A ) - VMC PROGRAMMING BASIC
S no.
Topic
V1
VMC- full form, def., main parts, Block diagram, working principle, Difference between CNC & VMC.
VMC Programming types-Absolute & incremental with exerice G90 & G91.
V4
VMC Programming elements - Commands, Block, Programme, Programme scan.
V5
Complete VMC programme Sequence with header & footer, programming points, data setting (G10, G11)
( B ) - VMC OPERATING
V6
Safety, on/off & start/stop of VMC m/c
V7
SIX MAIN FUNCTIONS:- 1) Position: M/c,Abs,lnc & Relative 2) PROGRAMMING: Making new & Editing 3) OFFSET SETT.: Geom, Wear & Work coordinate series 4) SYSTEM 5) MESSAGE 6) CUSTOM GRAPH
V8
7 OPERATING MODES:- a) HANDLE MODE FUNCTION b) JOG MODE FUNCTIONS c) AUTO MODE FUNCTION d) SINGLE BLOCK FUNCTIONS e) REF. RETURN - f) MDA g) EDIT MODE h)DRYRUN, M/C LOCK & CHUCK CLAMP OD/ID
( C ) - VMC SETTING
V9
OFFSET SETTING & TOOL SELECTION - G43 - Tool length offset (+) - G44 - Tool length offset (-) - G49 - Tool length offset (cancel) - H - Geometry offset (Z axis) - D - Cutter radius compensation - Wear Offset(wear offset in tool length & cutter radius) - G54 - G59 - Work coordinate system (X & Y axis)
